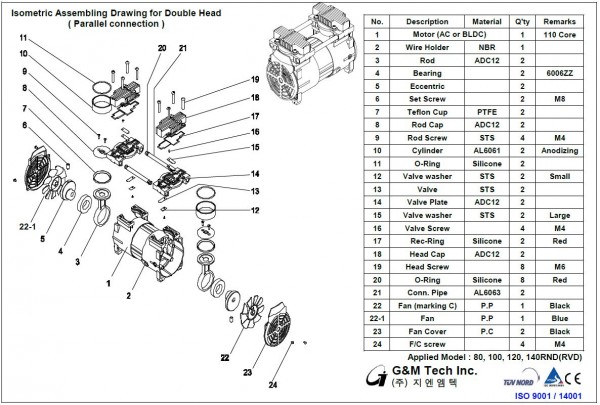

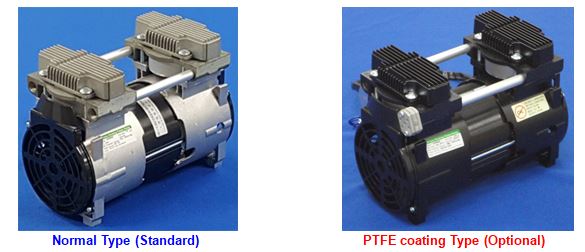

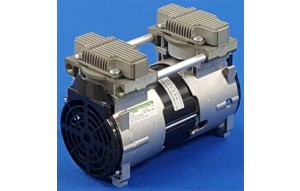

OIL-Less Piston Pumps (Double Head & Parallel connection) |
Model (option code) | 80RND | 100RND | 120RND | 140RND |
-41
| -42 | -41 | -42
| -41 | -42 | -41 | -42 |
| Voltage | 110VAC | 220VAC | 110VAC | 220VAC | 110VAC | 220VAC | 110VAC | 220VAC |

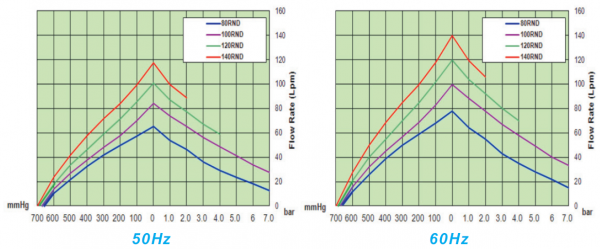

Free Flow Rate | 66 Lpm (50Hz) 78 Lpm (60Hz) | 84 Lpm (50Hz) 100 Lpm (60Hz) | 101 Lpm(50Hz) 120 Lpm (60Hz) | 118 Lpm (50Hz) 140 Lpm (60Hz) |
Max. Vacuum | 650 mmHg | 680 mmHg | 690 mmHg | 700 mmHg |
Max. Pressure | 7 bar | 7 bar | 4 bar | 2 bar |
7 bar available as option
|
Connection type | PT1/4" Tap Thread |
Dimensions | 118(W) x 178(H) x 240(L) mm |
Installation Holes | 202 X 84 mm , M6 Tap Thread |
Weight | 7.1 Kg |
Motor Type | Capacitor start, Equipped with Thermal Protector, 4 pole |
Power Source | 100~110VAC(50/60Hz), 200~220VAC(50/60Hz), 230~240VAC(50Hz) |
Working ambient Temp.
| 0 ~ 40 ℃
|
