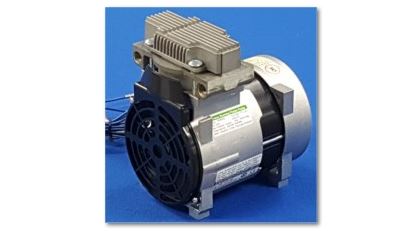

2. OIL-Less Piston Pumps (Single Head)

첨부파일

Pump-CatalogAC-power-2023-verison_resized.pdf (2.5M) 526회 다운로드 DATE : 2023-11-10 17:33:07

본문

■ Model Number
- 40RNS,50RNS, 60RNS, 70RNS

■ Applications

- Beverage (Beer) Dispenser especially

- Medical, Dental & E.N.T. equipment

( Portable Suction, Nebulizer, Sprayer)
- As an OIL-Less Air compressor and

Vacuum pump
- Oxygen Concentrator & Ozone generator
- Semi Conductor processing , Chip mounter
- Packing machine, Food processing
- Environmental equipment
- Industrial equipment

■ Technical Specifications

OIL-Less Piston Pumps (Single Head Series)
Model (option code)	40RNS		50RNS		60RNS		70RNS
	-41	-42	-41	-42	-41	-42	-41	-42
Voltage	110VAC	220VAC	110VAC	220VAC	110VAC	220VAC	110VAC	220VAC
Free Flow Rate	33 Lpm (50Hz) 39 Lpm (60Hz)		42 Lpm (50Hz) 50 Lpm (60Hz)		50.5 Lpm(50Hz) 60 Lpm (60Hz)		59 Lpm (50Hz) 70 Lpm (60Hz)
Max. Vacuum	650 mmHg		680 mmHg		690 mmHg		700 mmHg
Max. Pressure	7 bar		4 bar		2 bar		NA
Connection type	PT1/4" Tap Thread
Dimensions	118(W) x 178(H) x 155(L) mm
Installation Holes	105 X 84 mm , M6 Tap Thread
Weight	4.2 Kg
Motor Type	Capacitor start, Equipped with Thermal Protector, 4 pole
Power Source	100~110VAC(50/60Hz), 200~220VAC(50/60Hz), 230~240VAC(50Hz)
Working ambient Temp.	0 ~ 40 ℃

^{★ We have various specification out of data above, please contact us for required specifications or future information. ★}

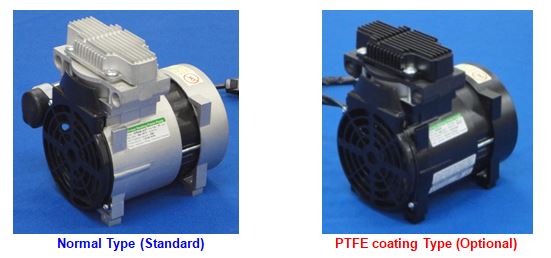

■ Surface Treatment option( Normal & PTFE coating type)

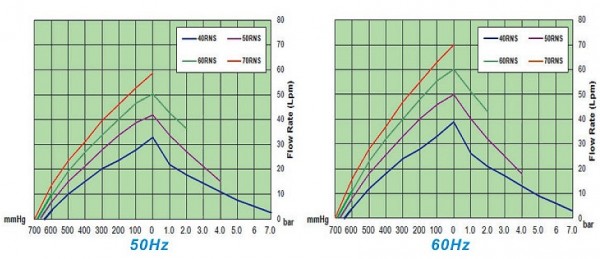

■ Performance Curves

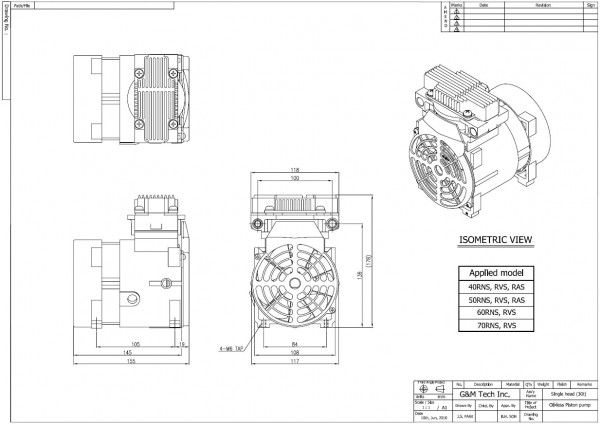

■ Drawing

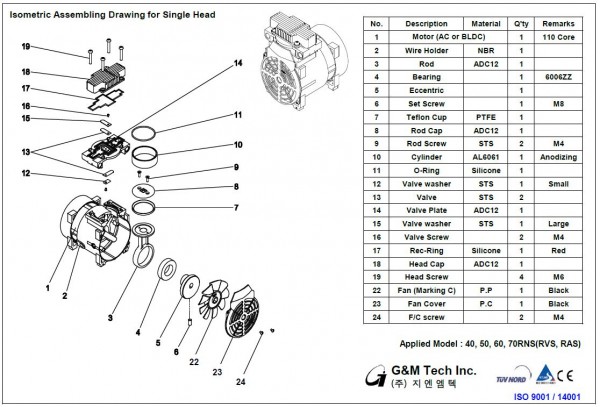

■ Assembly Drawing
