1. Mini OIL-Less Piston pumps

첨부파일

Pump-CatalogAC-power-2023-verison_resized.pdf (2.5M) 850회 다운로드 DATE : 2023-11-10 17:32:56

본문

■ Model Number

- 10, 12, 15, 20, 25 & 30RNS

■ Applications
- Beverage (Beer) Dispenser especially

- Cold Brew & Nitro Coffee

- Medical, Dental & E.N.T. equipment

( Portable Suction, Nebulizer, Sprayer)
- As an OIL-Less Air compressor and

Vacuum pump
- Oxygen Concentrator & Ozone generator
- Semi Conductor processing , Chip mounter
- Packing machine, Food processing
- Environmental equipment
- Industrial equipment

■ Technical Specifications

Mini OIL-Less Piston Pumps (Single Head Series)

Model

(option code)

10RNS

12RNS

15RNS

20RNS

25RNS

30RNS

-41

-42

-41

-42

-41

-42

-41

-42

-21

-22

-21

-22

Voltage

110VAC

220VAC

110VAC

220VAC

110VAC

220VAC

110VAC

220VAC

110VAC

220VAC

110VAC

220VAC

Free Flow Rate

8 Lpm (50Hz)

9.5 Lpm (60Hz)

10 Lpm (50Hz)

12 Lpm (60Hz)

12.5 Lpm(50Hz)

15 Lpm (60Hz)

16 Lpm (50Hz)

19 Lpm (60Hz)

21 Lpm (50Hz)

24 Lpm (60Hz)

25 Lpm (50Hz)

29 Lpm (60Hz)

Max. Vacuum

490 mmHg

540 mmHg

600 mmHg

650 mmHg

600 mmHg

650 mmHg

Max. Pressure

2 bar

2.5 bar

4.4 bar

6 bar

4.5 bar

6.5 bar

Connection type

Barb Type (R1/8" Tap available as option)

Dimensions

94(W) x 117(H) x 140(L) mm

Installation Holes

78 X 47 mm

Weight

1.95 Kg

Motor Type

Capacitor start, Equipped with Thermal Protector, 4 pole

Capacitor start, TP applied, 2 pole

Power Source

100~110VAC(50/60Hz), 200~220VAC(50/60Hz), 230~240VAC(50Hz)

Working Amb. Temp.

0 ~ 40 ℃

^{★ We have various specification out of data above, please contact us for required specifications or future information. ★}

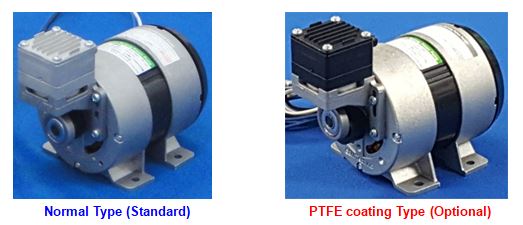

■ Surface Treatment option( Normal & PTFE coating type)

■ Performance Curves

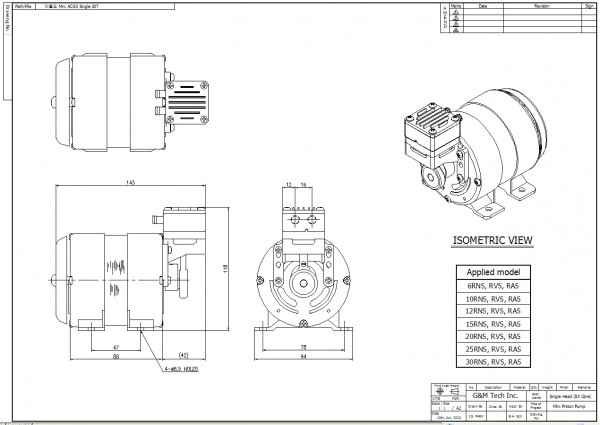

■ Drawing

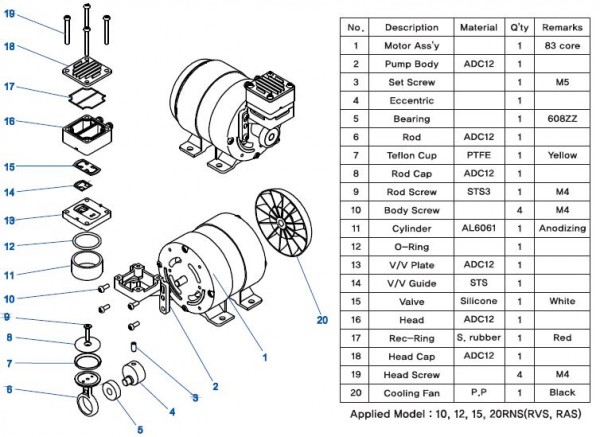

■ Assembly Drawing
