1. Single Head (AC version)

첨부파일

Pump Catalog-DiaphragmAC,BLDC-2019-resized.pdf (4.6M) 156회 다운로드 DATE : 2019-12-06 16:30:05

■ Model Number
- 20DNS,30DNS, 35DNS, 40DNS

■ Applications

■ Technical Specifications

OIL-Less Diaphragm Vacuum Pumps (Single Head Type)
Model (option code)	20DNS		30DNS		35DNS		40DNS
	-41	-42	-41	-42	-41	-42	-41	-42
Voltage	110VAC	220VAC	110VAC	220VAC	110VAC	220VAC	110VAC	220VAC
Free Flow Rate	22 Lpm (50Hz) 25 Lpm (60Hz)		27 Lpm (50Hz) 31 Lpm (60Hz)		33 Lpm(50Hz) 38 Lpm (60Hz)		42 Lpm (50Hz) 48 Lpm (60Hz)
Max. Vacuum	630 mmHg		560 mmHg		580 mmHg		570 mmHg
Max. Pressure	NA		NA		NA		NA
Power Consumption	60W (50Hz)		60W (50Hz)		60W (50Hz)		85W (50Hz)
	65W (60Hz)		65W (60Hz)		65W (60Hz)		98W (60Hz)
Dimensions (mm)	93(W)x128(H)x158(L)		103(W) x 146(H) x 178(L)
Weight	2.2 Kg		2.6 Kg
Connection type	PT1/4" Tap Thread
Diaphragm	Teflon Sheeted EPDM ( 2 Layers )
Motor Type	Capacitor start, Equipped with TP(Thermal Protector)
	4 pole						2 pole
Power Source	100~110VAC(50/60Hz), 200~220VAC(50/60Hz), 230~240VAC(50Hz)
Working ambient Temp.	5 ~ 40 ℃
Media Temperature	5 ~ 60 ℃

^{★ We have various specification out of data above, please contact us for required specifications or future information. ★}

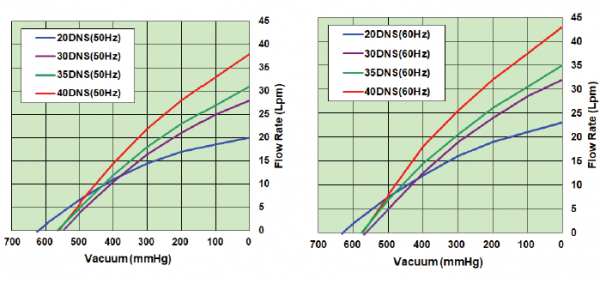

■ Performance Curves

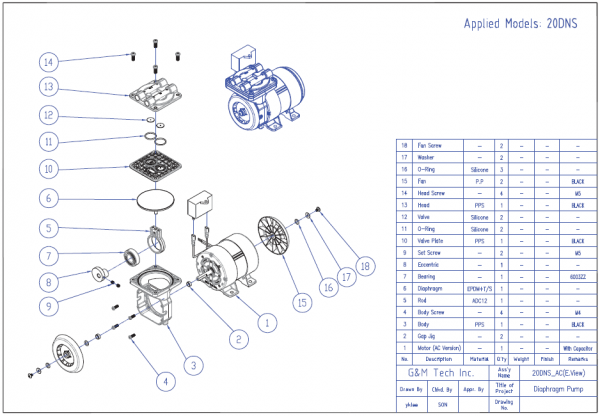

■ Drawing

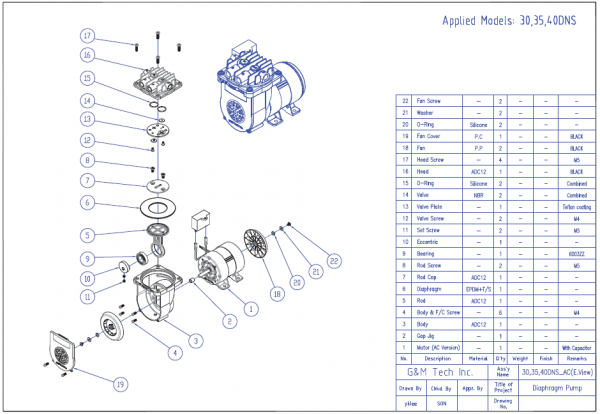

■ Assembly Drawing
