Speclalzed OIL-LESS Plston Pumps

Linear Pump
PRODUCT   >   Linear Pump

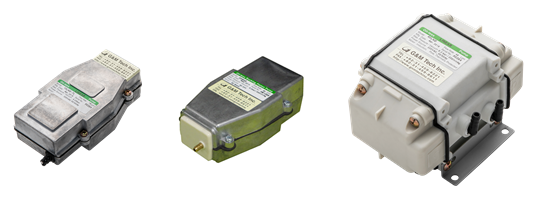

OIL-Less Linear Diaphragm pumps

본문


 MODEL number
    7LND, 15LND, 40LND, 80LND


Applications

  - Air mattress
  - Positive Pressure Therapy

   - Fresh Air Supply

  - Packing machine, Food processing
   - Environmental equipments
    - Industrial equipments

- Waste Water Treatment

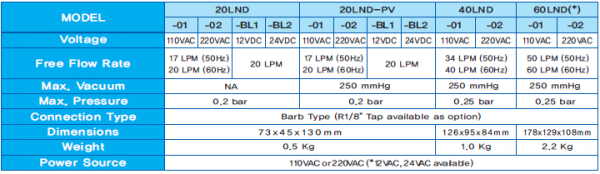

Technical Specifications

OIL-Less Linear Air pumps

 Model 7LND 15LND 15LND-PV 40LND

Free Flow Rate

6 Lpm (50Hz)

 7 Lpm (60Hz)

 13 Lpm (50Hz)

 15 Lpm (60Hz)

  13 Lpm (50Hz)

 15 Lpm (60Hz)

 34 Lpm (50Hz)

 40 Lpm (60Hz)

 Max. Vacuum

 NA

NA

200 mmHg (50Hz)

210 mmHg (60Hz)

250 mmHg

 Max pressure

 0.19 Bar

 0.2 bar

0.2 bar

 0.25 bar

 Connection type

 Barb type

 Dimensions (mm)

 60 x 44 x 130

73 x 45 x 130

126 x 95 x 84

 Weight

 0.5 Kg

 0.5 Kg

 1.0 Kg

 Power Consumption

 5 W

6 W

40 W

 Power Source

110VAC or 220VAC  ( 12VAC, 24VAC available )

 ★ We have various specification out of data above, please contact us for required specifications or future information.

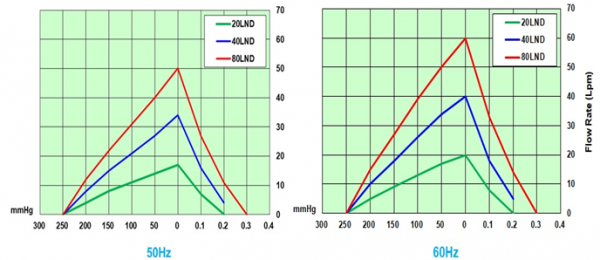

Performance Curves






Performance Curve : 40LND





 Drawing



7LND, 15LND, 15LND-PV, 20LND

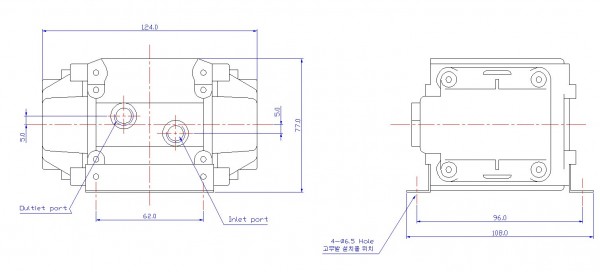

40LND

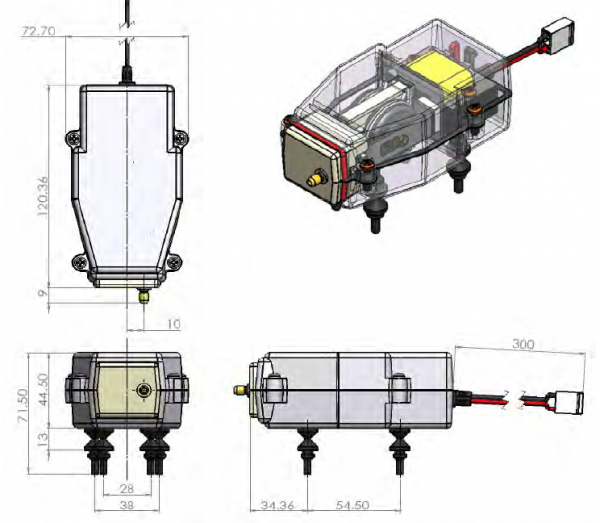

 Assembly Drawing


7LND, 15LND, 15LND-PV, 20LND
