1. Mini OIL-Less Piston pumps (Brushed DC)

첨부파일

Pump CatalogDC power-2022 verison-resized.pdf (2.6M) 391회 다운로드 DATE : 2022-11-08 16:59:54

본문

■ Model Number

- 10, 12, 15, 20, 25 & 30RNS

■ Applications
- Beverage (Beer) Dispenser especially

- Cold Brew & Nitro Coffee

- Medical, Dental & E.N.T. equipment

( Portable Suction, Nebulizer, Sprayer)
- As an OIL-Less Air compressor and

Vacuum pump
- Oxygen Concentrator & Ozone generator
- Semi Conductor processing , Chip mounter
- Packing machine, Food processing
- Environmental equipment
- Industrial equipment

■ Technical Specifications

Mini OIL-Less Piston Pumps (BDC version, Single Head Series)

Model

(option code)

10RNS

12RNS

15RNS

20RNS

25RNS

30RNS

-BD1

-BD2

-BD1

-BD2

-BD1

-BD2

-BD1

-BD2

-BD1

-BD2

-BD1

-BD2

Voltage

12VDC

24VDC

12VDC

24VDC

12VDC

24VDC

12VDC

24VDC

12VDC

24VDC

12VDC

24VDC

Rated Current

1.5A

0.8A

2.4A

1.2A

3.1A

1.5A

3.1A

4.5A

2.4A

6.1A

2.9A

Free Flow Rate

9.5 Lpm

12 Lpm

15 Lpm

19 Lpm

24 Lpm

29 Lpm

Max. Vacuum

490 mmHg

540 mmHg

600 mmHg

650 mmHg

600 mmHg

650 mmHg

Max. Pressure

2 bar

2.5 bar

4.4 bar

6 bar

5 bar

6.5 bar

Connection type

Barb Type (R1/8" Tap availabe as option)

Dimensions

75(W) x 106(H) x 140(L) mm

Weight

1.25 Kg

Motor Type

Brushed DC version , Insulation class E

Working amb. Temp.

0 ~ 40 ℃

^{★ We have various specification out of data above, please contact us for required specifications or future information. ★}

★ Please contact with factory for information of Dual Head series. ★

■ Surface Treatment option( Normal & PTFE coating type)

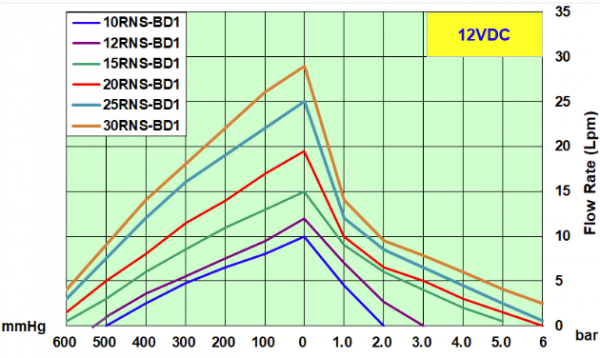

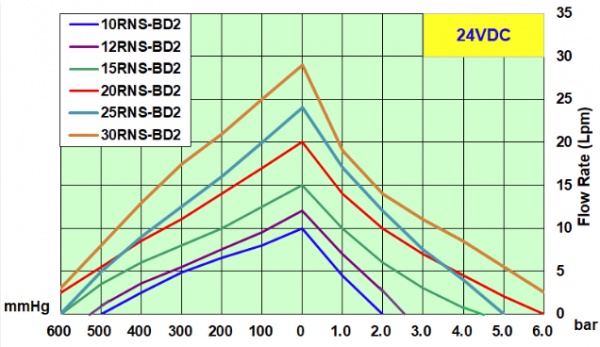

■ Performance Curves

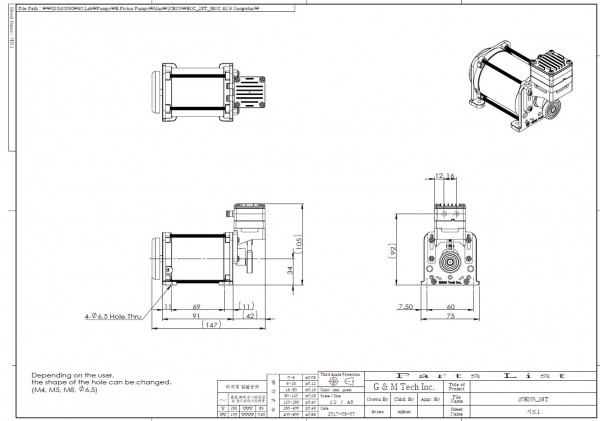

■ Drawing

■ Assembly Drawing
