Speclalzed OIL-LESS Plston Pumps

OIL-Less Piston Pump (DC version)
PRODUCT   >   Piston Pump (DC)

3. OIL-Less Piston Pumps(BLDC,Single Head)

첨부파일

본문









Model Number
- 40RNS-ai,50RNS-ai, 60RNS-ai, 70RNS-ai

   50RNS-ED, 60RNS-ED, 70RNS-ED


Applications

- Fuel Cell system

- EV ( Electric Vehicle)

- DPF system for Diesel Engine

- Medical, Dental & E.N.T. equipment

   ( Portable Suction, Nebulizer, Sprayer)
- As an OIL-Less Air compressor and

   Vacuum pump
- Oxygen Concentrator & Ozone generator
- Semi Conductor processing , Chip mounter
- Packing machine, Food processing
- Environmental equipment
- Industrial equipment

 Technical Specifications


OIL-Less Piston  Pumps (BLDC version, Single Head Series)

Model

40RNS-ai

50RNS-ai

60RNS-ai

50RNS-ED

60RNS-ED

 70RNS-ED

 Voltage 12VDC24VDC 12VDC 24VDC 12VDC 24VDC 12VDC  24VDC 12VDC 24VDC12VDC24VDC
 Rated Current6.5A5.5A 12A 6.2A 16A 10A 19A8A23A9.5A25A 11A

Free Flow Rate

40 Lpm

47 Lpm

55 Lpm

~ 55 Lpm

~ 63 Lpm

~ 72 Lpm

Driver type Internal DriverExternal Driver (GED-2425D), RPM adjustable

 Max. Vacuum

650 mmHg

650 mmHg

670 mmHg

 680 mmHg

690 mmHg

700 mmHg

 Max. Pressure

7 bar

bar

2 bar

4 bar

7 bar

7 bar

4 bar

Connection type

R1/4" Tap

 Dimensions

118(W) x 178(H) x 160(L) mm

 Weight

3.8 Kg

 Motor Type

BLDC(Brush-less DC) version , Insulation class E

Working amb. Temp.

0 ~ 40 ℃

★ We have various specification out of data above, please contact us for required specifications or future information.




 Surface Treatment option( Normal & PTFE coating type)

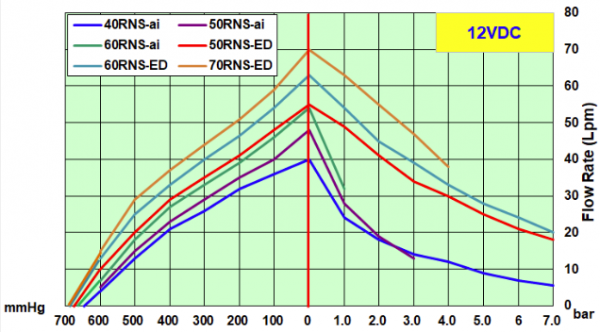

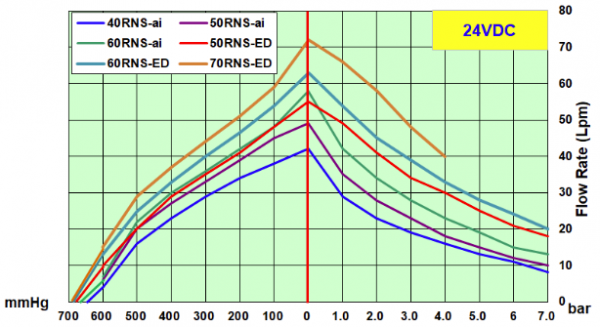

Performance Curves







Drawing




 Assembly Drawing
