Speclalzed OIL-LESS Plston Pumps

OIL-Less Piston Pump (DC version)
PRODUCT   >   Piston Pump (DC)

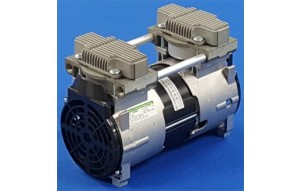

4. OIL-Less Piston Pumps (BLDC, Double Head type)

첨부파일

본문


Model Number

- Serial connection (2-stage vacuum)

  60RND-ED, 70RND-ED
- Parallel connection

   80RND-ED,100RND-ED, 120RND-ED, 140RND-ED


Applications

- Fuel Cell system

- EV ( Electric Vehicle)

- DPF system for Diesel Engine

- Medical, Dental & E.N.T. equipment
- As an oil-less air compressor and Vacuum pump
- Oxygen Concentrator & Ozone generator
- Semi Conductor processing , Chip mounter
- Packing machine, Food processing
- Environmental equipment
- Industrial equipment





 Technical Specifications


OIL-Less Piston  Pumps (BLDC version, Single Head Series)

Model

Serial Connection

Parallel Connection

 60RND-ED70RND-ED 80RND-ED100RND-ED120RND-ED 140RND-ED
 Voltage 12VDC24VDC 12VDC 24VDC 12VDC 24VDC 12VDC  24VDC 12VDC 24VDC12VDC24VDC
 Rated Current19A10A 21A 11A 30A 15A 30A19A30A22A30A 22A

Free Flow Rate

~ 60 Lpm

~ 70 Lpm

~ 80 Lpm

~ 100 Lpm

~ 120 Lpm

~ 140 Lpm

Driver typeExternal Driver (GED-2425D), RPM adjustable

 Max. Vacuum

740 mmHg

745 mmHg

650 mmHg

 680 mmHg

690 mmHg

700 mmHg

 Max. Pressure

NA

7 bar

7 bar

4 bar

2 bar

Connection type

R1/4" Tap

 Dimensions

118(W) x 178(H) x 240(L) mm

 Weight

6.8 Kg

 Motor Type

BLDC(Brush-less DC) version , Insulation class E

Working amb. Temp.

0 ~ 40 ℃

★ We have various specification out of data above, please contact us for required specifications or future information.

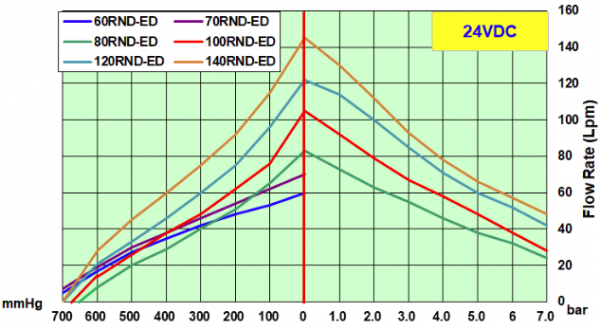

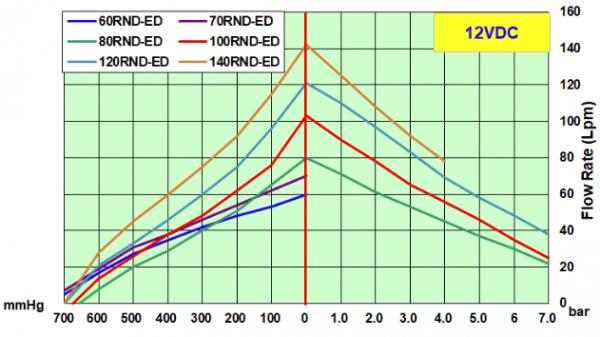

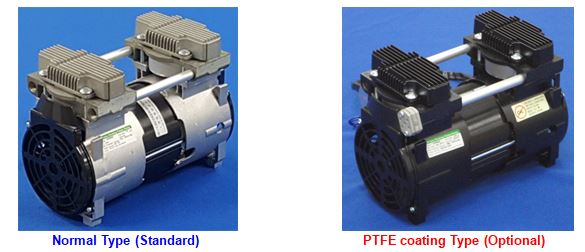

 Surface Treatment option( Normal & PTFE coating type)

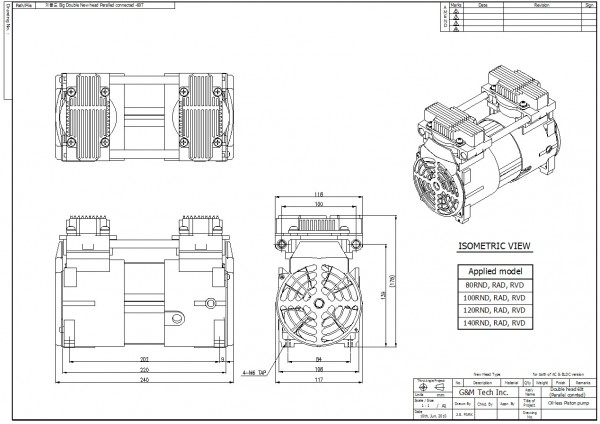

 Drawing

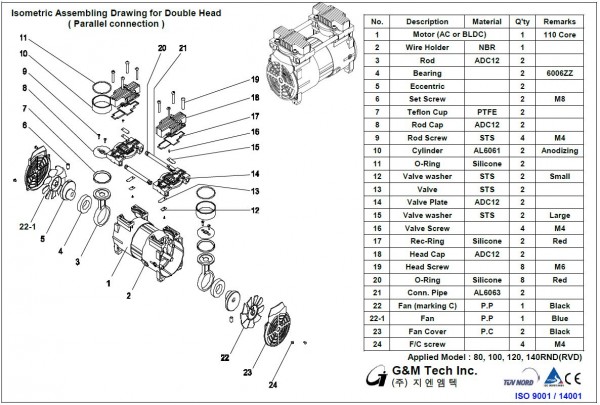

 Assembly Drawing
