2. Mini OIL-Less Piston pumps (BLDC version)

첨부파일

Pump CatalogDC power-2022 verison-resized.pdf (2.6M) 467회 다운로드 DATE : 2022-11-08 16:59:42

본문

■ Model Number

- Internal Driver type : 10, 12, 15, 20RNS

- External Driver type : 25RNS-ED, 30RNS-ED

■ Applications
- Fuel Cell system

- EV ( Electric Vehicle)

- DPF system for Diesel Engine

- Medical, Dental & E.N.T. equipment

( Portable Suction, Nebulizer, Sprayer)
- As an OIL-Less Air compressor and

Vacuum pump
- Oxygen Concentrator & Ozone generator
- Semi Conductor processing , Chip mounter
- Packing machine, Food processing
- Environmental equipment

■ Technical Specifications

Mini OIL-Less Piston Pumps (BLDC version, Single Head Series)

Model

(option code)

10RNS

12RNS

15RNS

20RNS

25RNS-ED

30RNS-ED

-BL1

-BL2

-BL1

-BL2

-BL1

-BL2

-BL1

-BL2

-BL1

-BL2

-BL1

-BL2

Voltage

12VDC

24VDC

12VDC

24VDC

12VDC

24VDC

12VDC

24VDC

12VDC

24VDC

12VDC

24VDC

Rated Current

1.7A

1.0A

2.4A

1.2A

3.1A

1.6A

3.1A

4.6A

2.8A

6.5A

3.8A

Driver Type

Internal type

External Type (GED-2405D)

RPM adjustable

Free Flow Rate

10 Lpm

12 Lpm

15 Lpm

19 Lpm

24 Lpm

29 Lpm

Max. Vacuum

490 mmHg

540 mmHg

600 mmHg

650 mmHg

600 mmHg

650 mmHg

Max. Pressure

2 bar

2.5 bar

1 bar

4.5 bar

6 bar

5 bar

6.5 bar

Connection type

Barb Type (R1/8" Tap availabe as option)

Dimensions

75(W) x 106(H) x 124(L) mm

Weight

0.8 Kg

Motor Type

BLDC(Brush-less DC) version , Insulation class E

Working amb. Temp.

0 ~ 40 ℃

^{★ We have various specification out of data above, please contact us for required specifications or future information. ★}

★ Please contact with factory for information of Dual Head series. ★

■ Surface Treatment option( Normal & PTFE coating type)

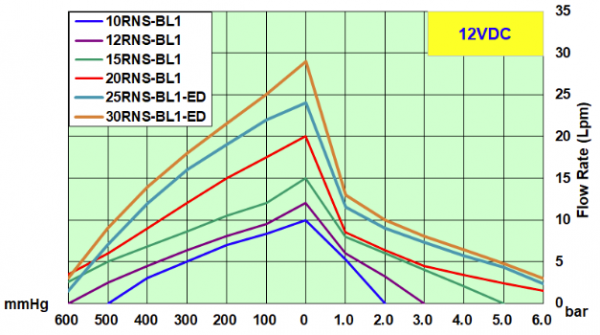

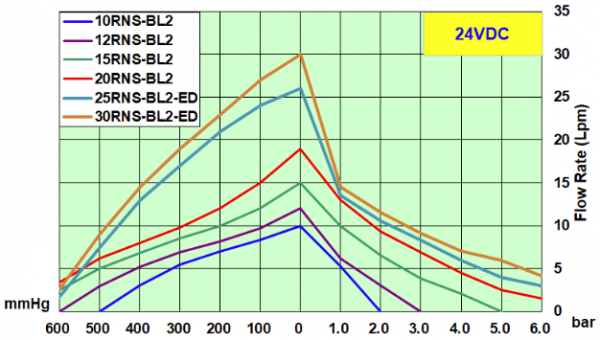

■ Performance Curves

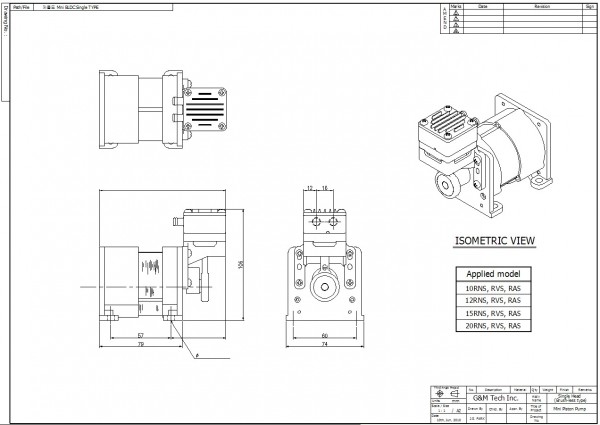

■ Drawing

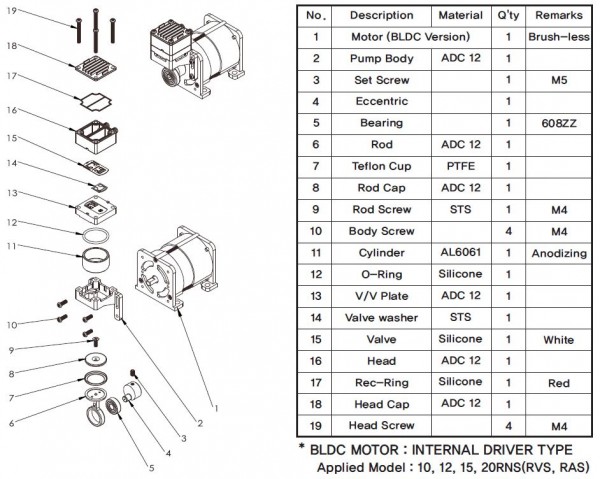

■ Assembly Drawing
